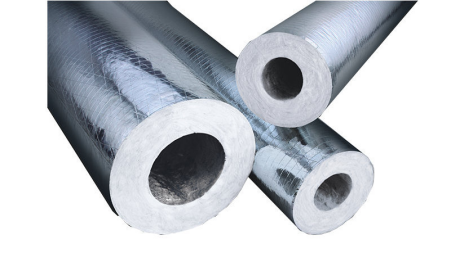

Eco-friendly glass wool pipe shell 2

Summary： Formaldehyde-free environmentally friendly glass wool pipes are made by bonding slender glass fibers together with acrylic thermosetting resin, and then pressed, cut, and polished to create a shell with uniform material distribution and good sealing properties.

400-0298-988

Product Consult

　　The formaldehyde-free environmentally friendly glass wool pipe system uses acrylic thermosetting resin to bond slender glass fibers together, which are then pressed, cut, and polished to create a material with uniform distribution and good sealing properties.

　　Product Types

　　Unfaced pipe insulation, faced pipe insulation

　　Product Applications

　　Building pipelines - thermal insulation and soundproofing for HVAC systems in residential, commercial, and industrial buildings.

　　Industrial pipeline systems - thermal insulation for various pipelines in chemical plants, power plants, nuclear power stations, etc.

　　Transportation industry - thermal insulation and noise reduction for pipeline systems in ships, vehicles, etc.

　　Standard Specifications　　

Density (kg/m³)	Length (mm)	Thickness (mm)	Inner diameter (mm) inches
55, 64	1000	20, 25, 30, 40, 50	22~425 (½”~18)

　　Physical Performance Indicators　　

Item	Indicator	Item	Indicator
Density	55~90kg/m³	Thermal load shrinkage temperature	>= 350℃
Density allowable deviation	-0+10%	Average fiber diameter	5 to 8 micrometers
Thermal conductivity	≤0.033w/m. k (20℃~40℃)	Slag ball content	0%
Combustion performance level	Class A non-combustible material	Moisture content	≤1.0%
